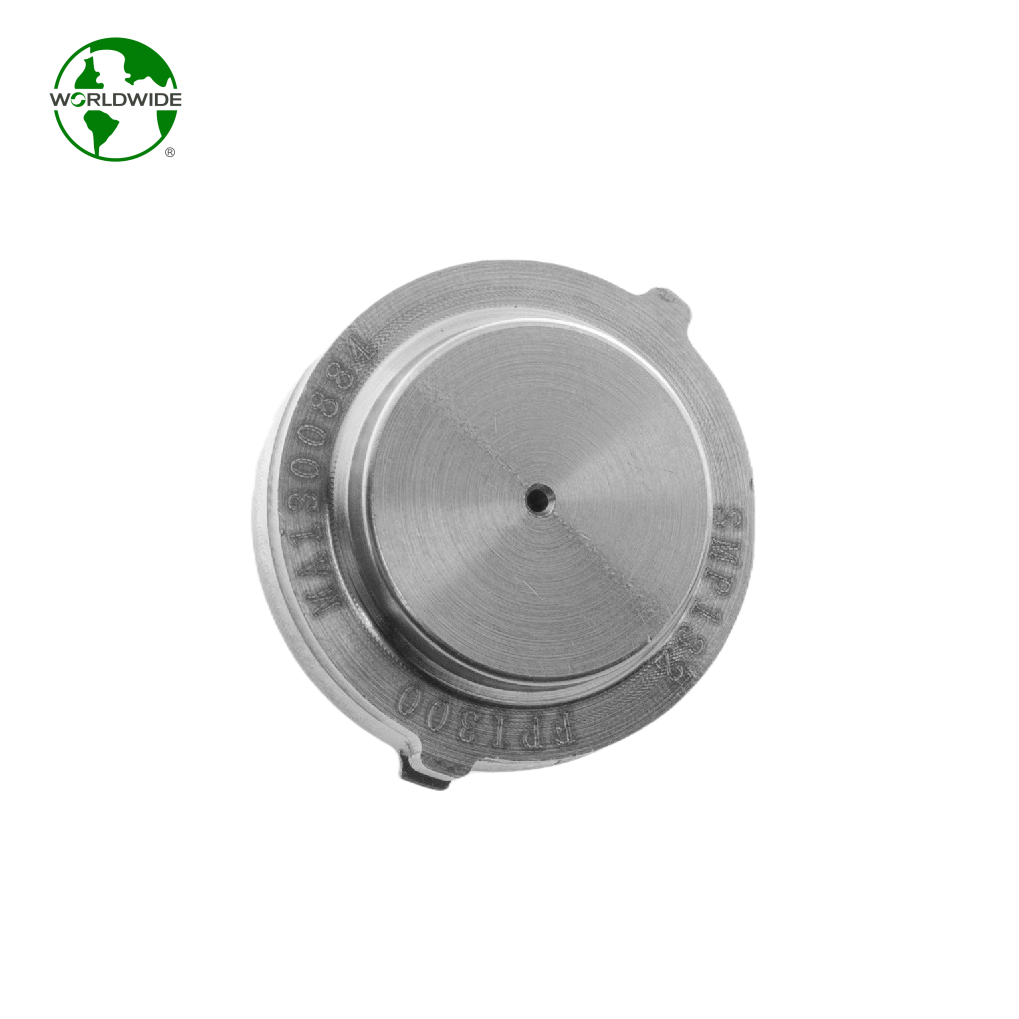

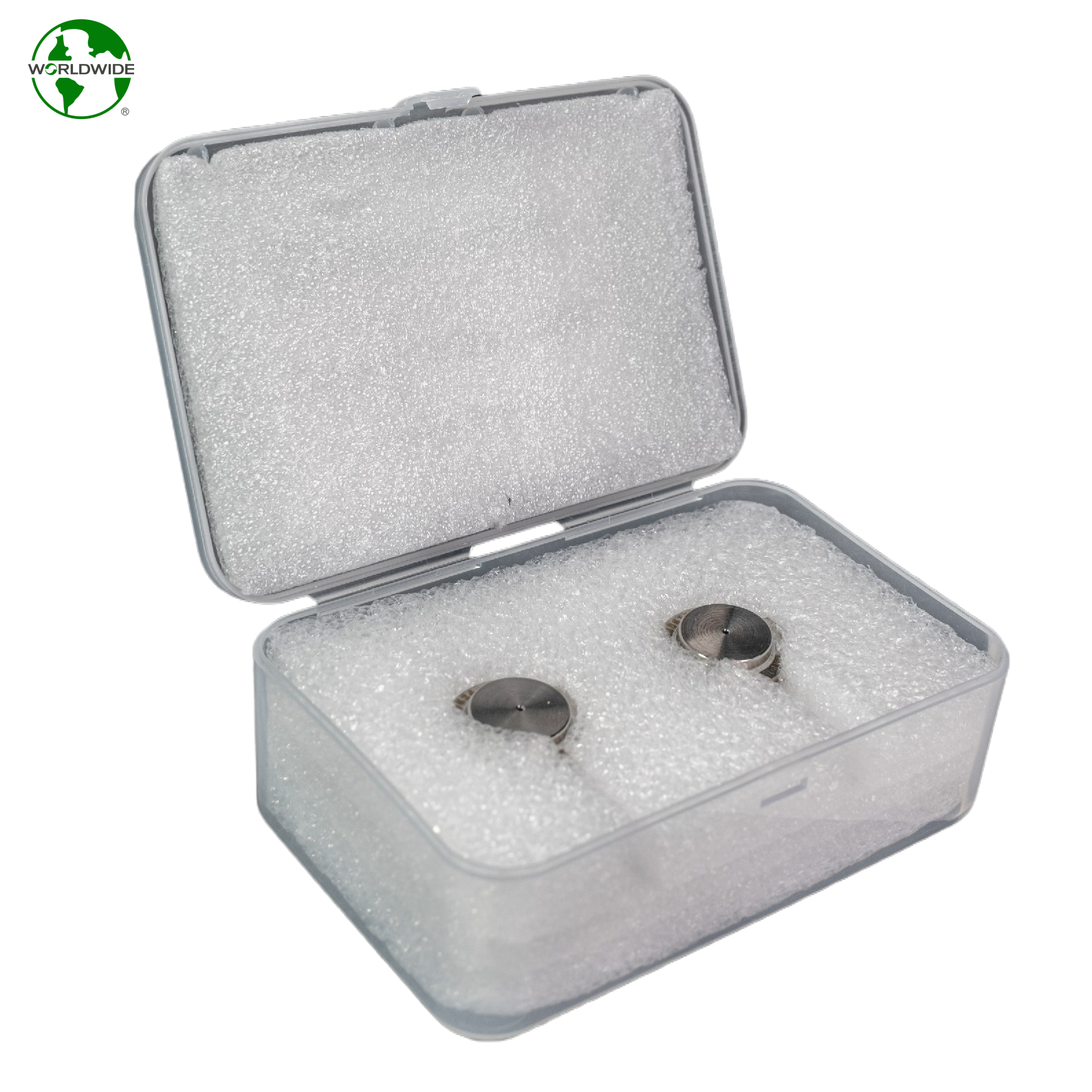

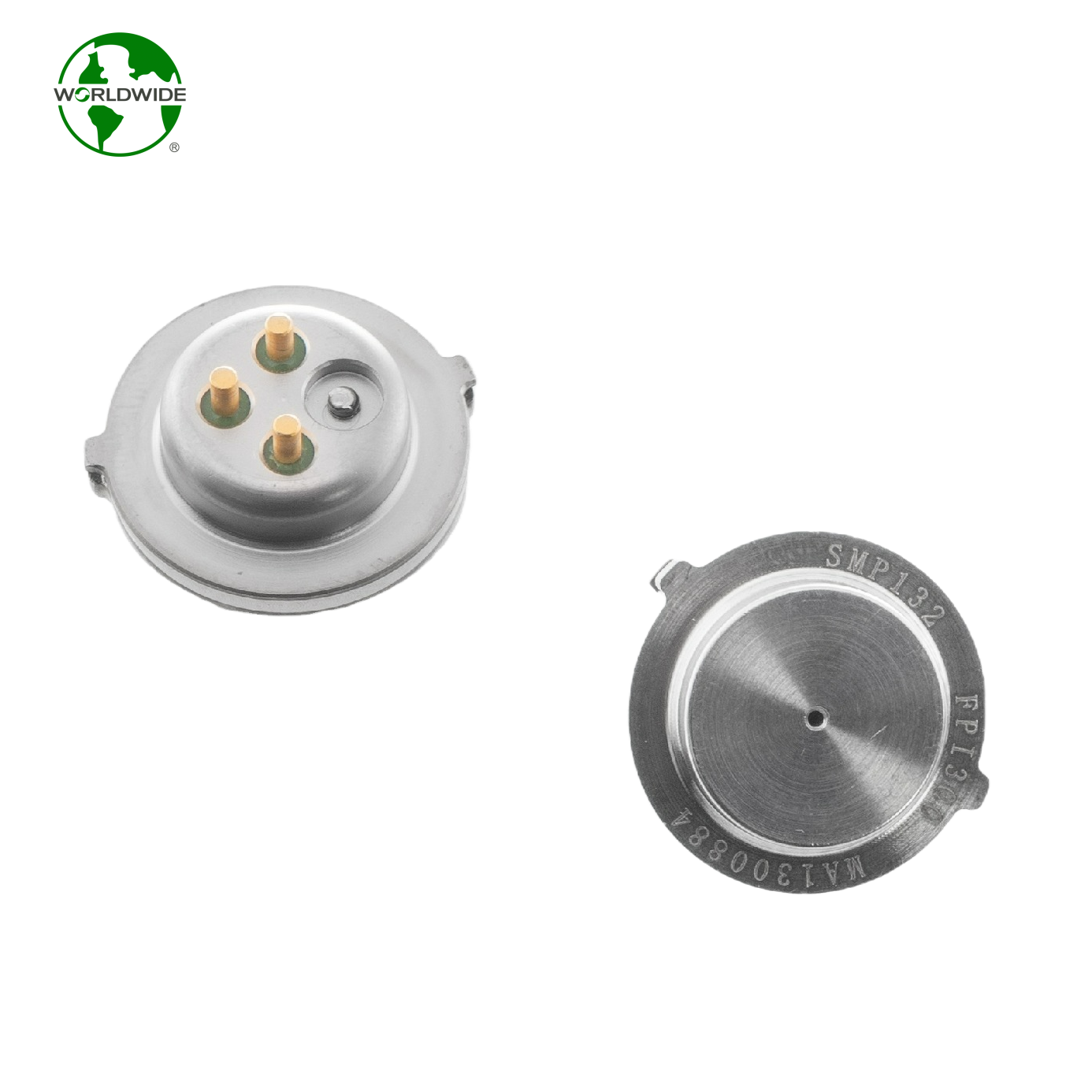

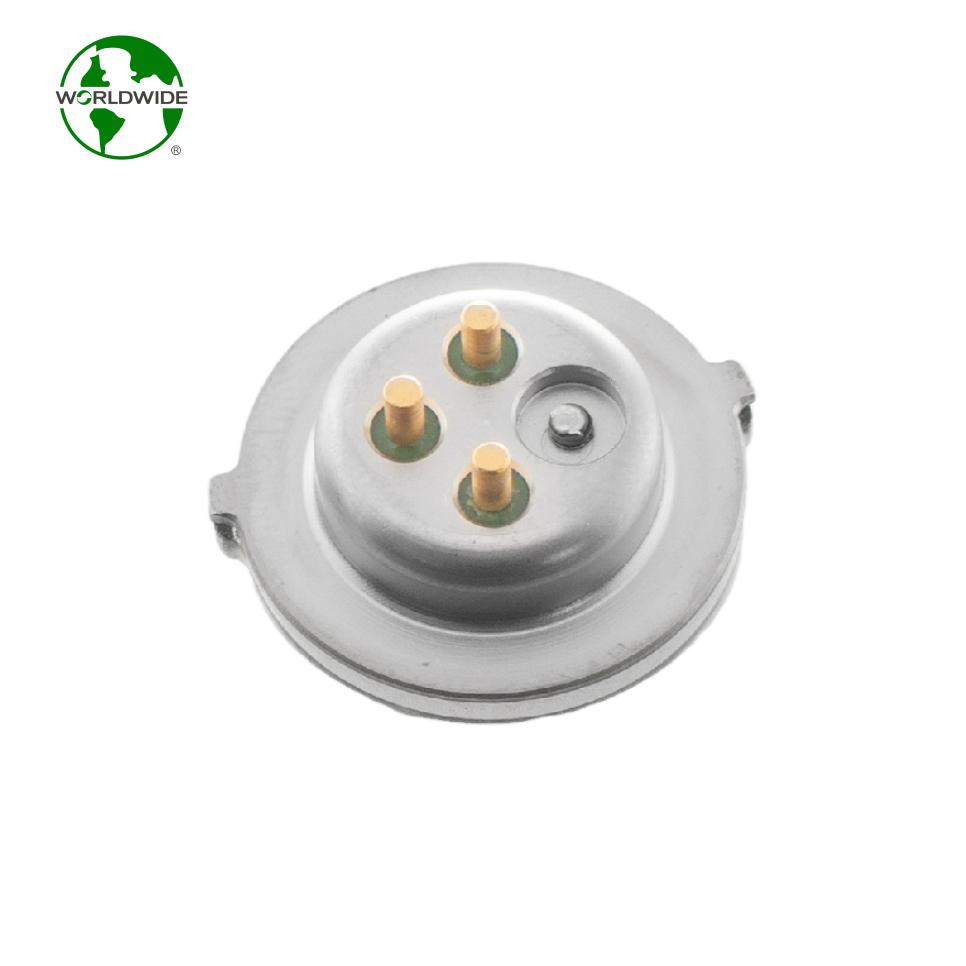

WWT 0DE Brand New tcm Pressure Sensor Auto Transmission Control Unit Tcu 0BH 0DW 0DC Replacement of SMP132 142 Gearbox Part
minimum order
1 piece
Quantity
- OE NO.:0DE
- Model:2000 - series
- Year:2000-
- Car Fitment:VW
- Warranty:NEGOTIATE
- Place of Origin:China
- Brand Name:WWT
- Condition:New
- Sensor type:WWT-FPI300 (Substitution of Bosch SMP132/142)
- Applicable Vehicle Brand:Volkswagen/Sokoda/Audi
- Applicable Vehicle Type::Superb/Magotan/Passat/Tiguan/Teramont/CC/Lamando/Q3/A4
- Autotransmission Type:0DE/0BH/0DW/0DL/0DC
- Target Market:Automobile aftermarket
Products Paramenters
Parameter | Character | Range | Unit | ||||
min | nominal | max | |||||
|Pressure | P | 50 | / | 2200 | Kpa | ||
Output(P=50kPa;Vcc=5V) | Vout | / | 10 | / | %Vcc | ||
Output(P=2200kPa;Vcc=5V) | Vout | / | 90 | / | %Vcc | ||
Operation Temperature | T | -40 | / | 150 | ℃ | ||
Accuracy | / | / | 1 | / | %Vcc | ||
Operation Voltage | Vcc | 4.75 | 5 | 5.25 | V | ||
Operation Currency | Icc | / | 7 | 10 | mA | ||
Response time(10%-90%) | / | / | 1 | ms | |||
Output voltage down limitation(Vcc=5V) | UAmin | 0.25 | 0.3 | 0.35 | V | ||
Output voltage upper limitation(Vcc=5V) | UAmax | 4.65 | 4.7 | 4.75 | V | ||
Overload(5V~18V) | U | / | / | 18 | V | ||
Overpressure | Pmax | / | / | 3000 | kPaA | ||
Bursting Pressure | / | / | / | 4000 | kPaA | ||
Products Description
Company Profile
Certifications
Our Advantages
Why Choose Us
