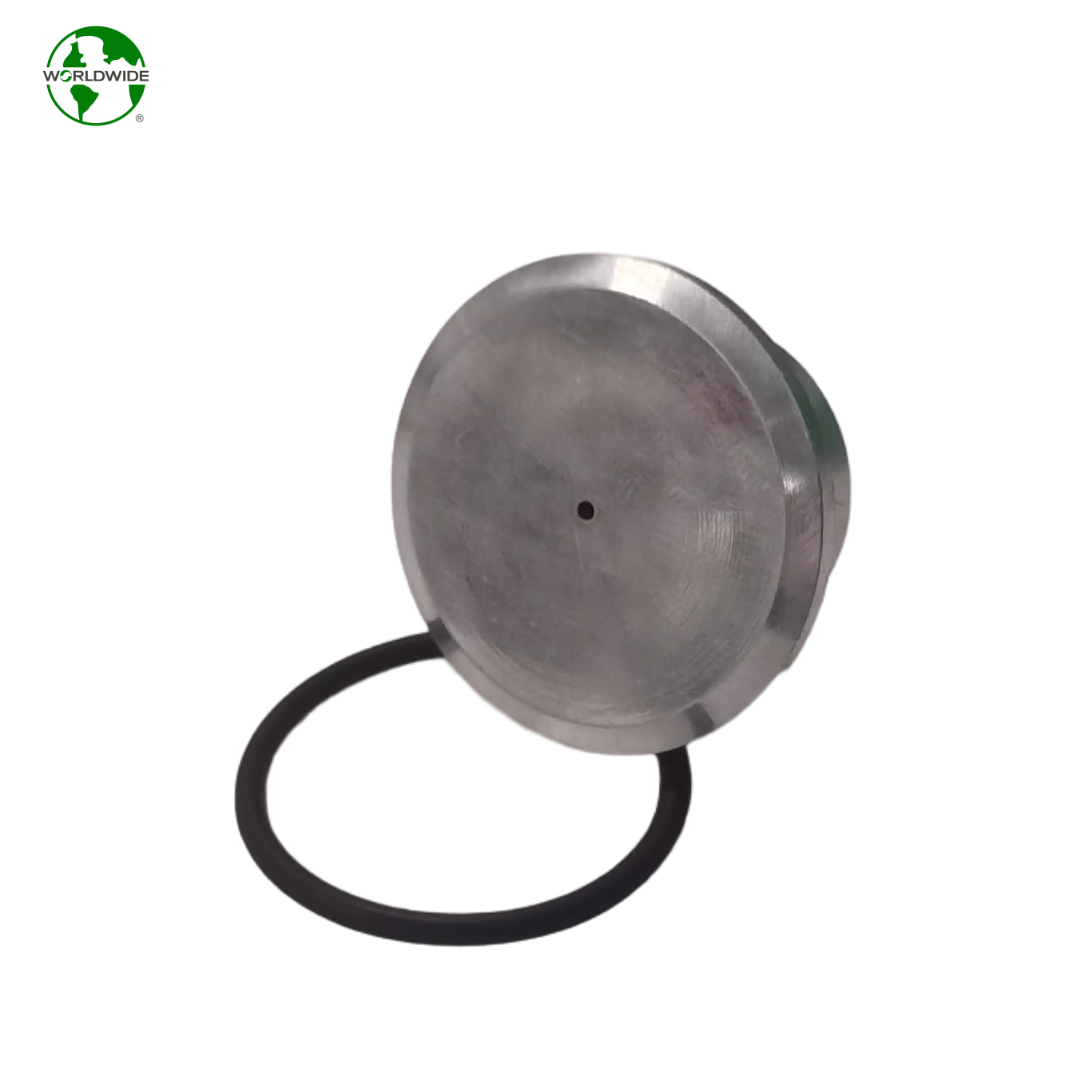

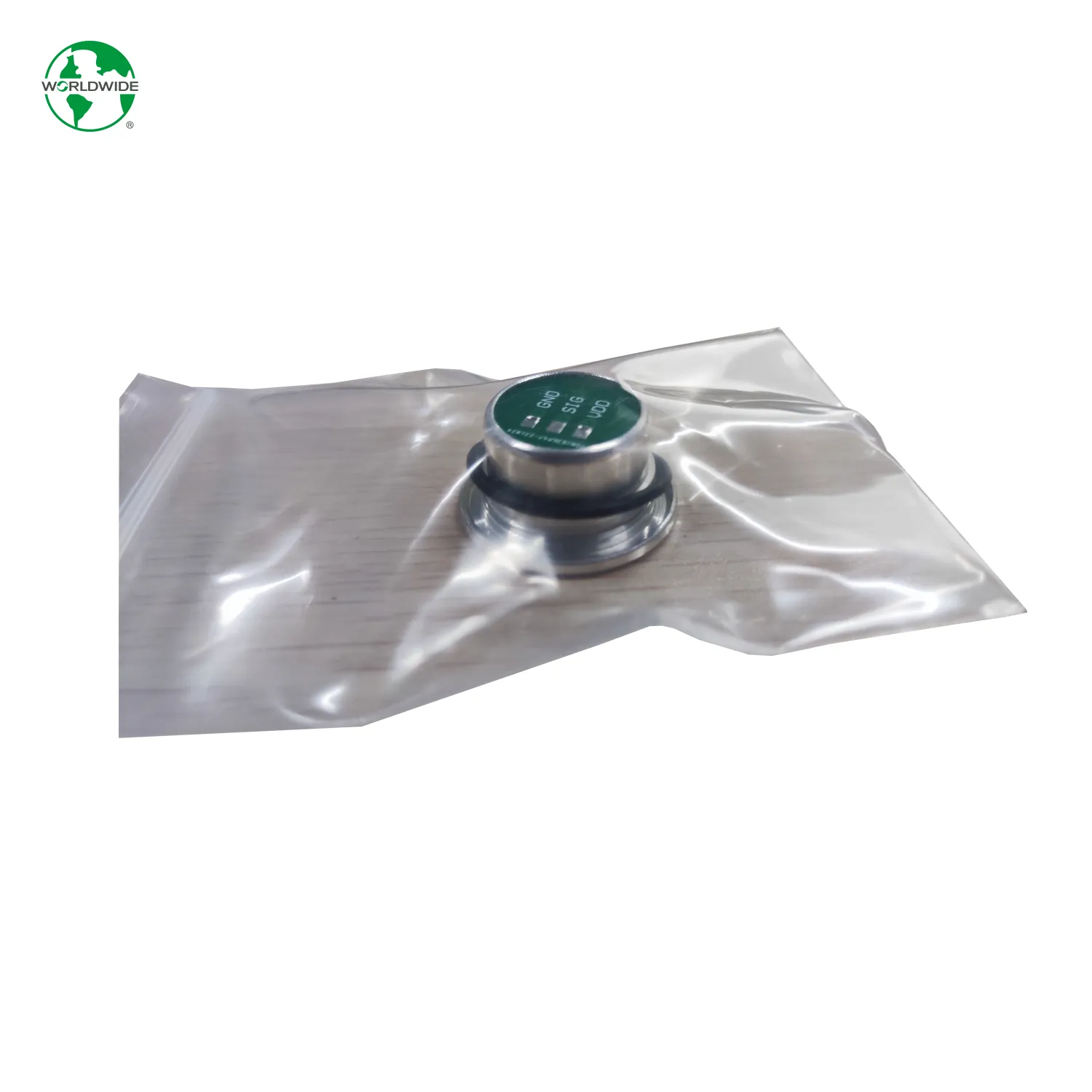

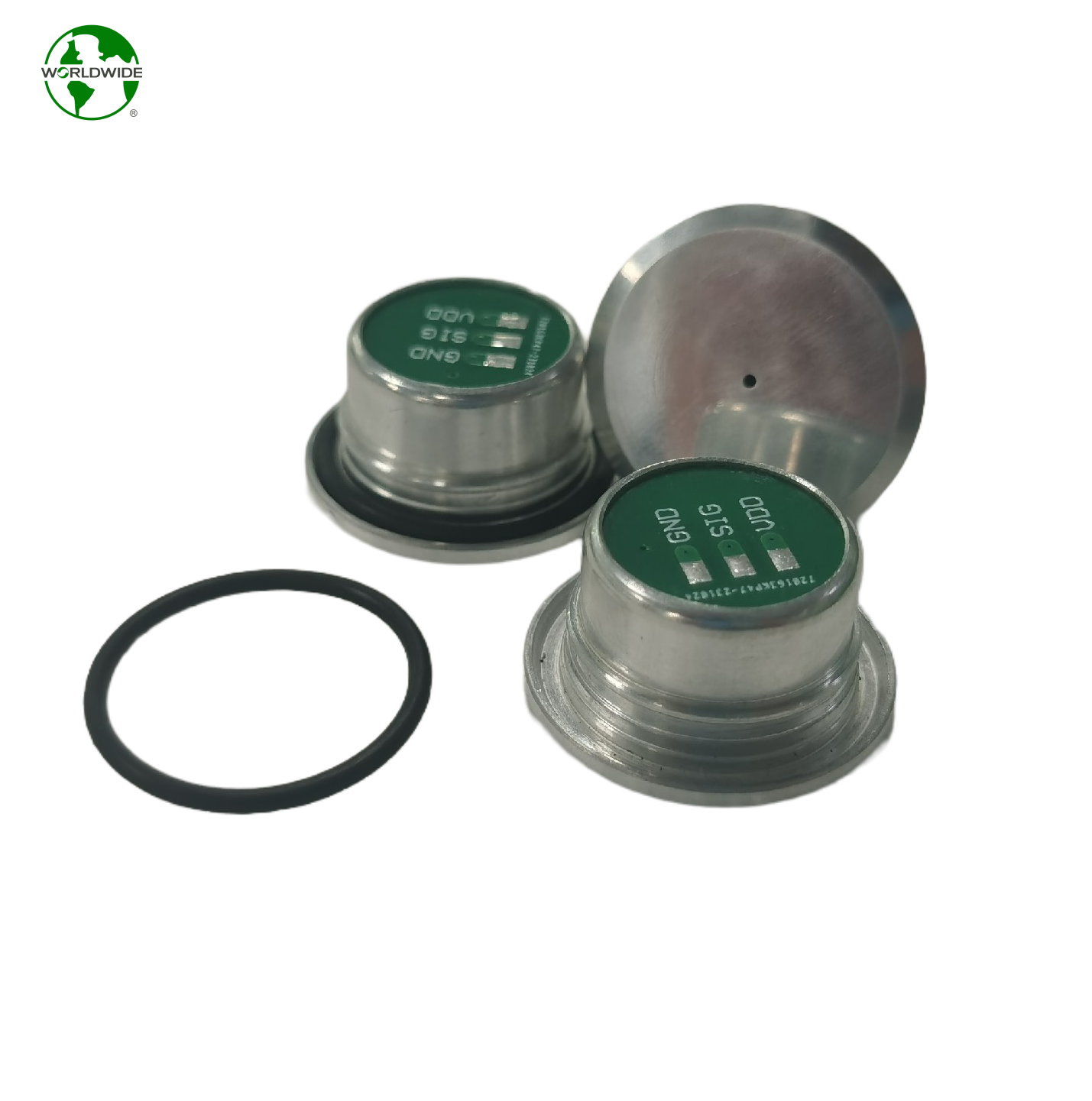

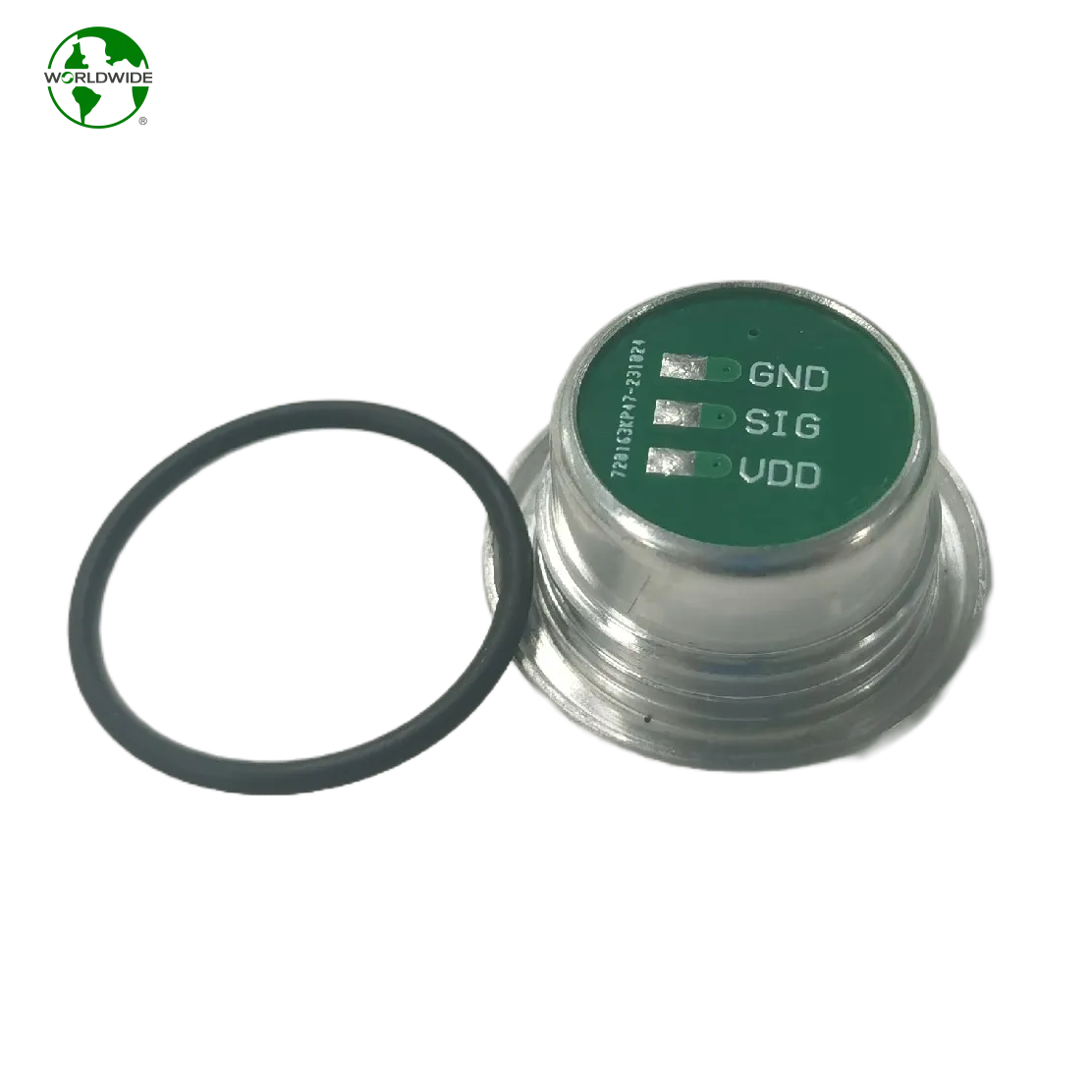

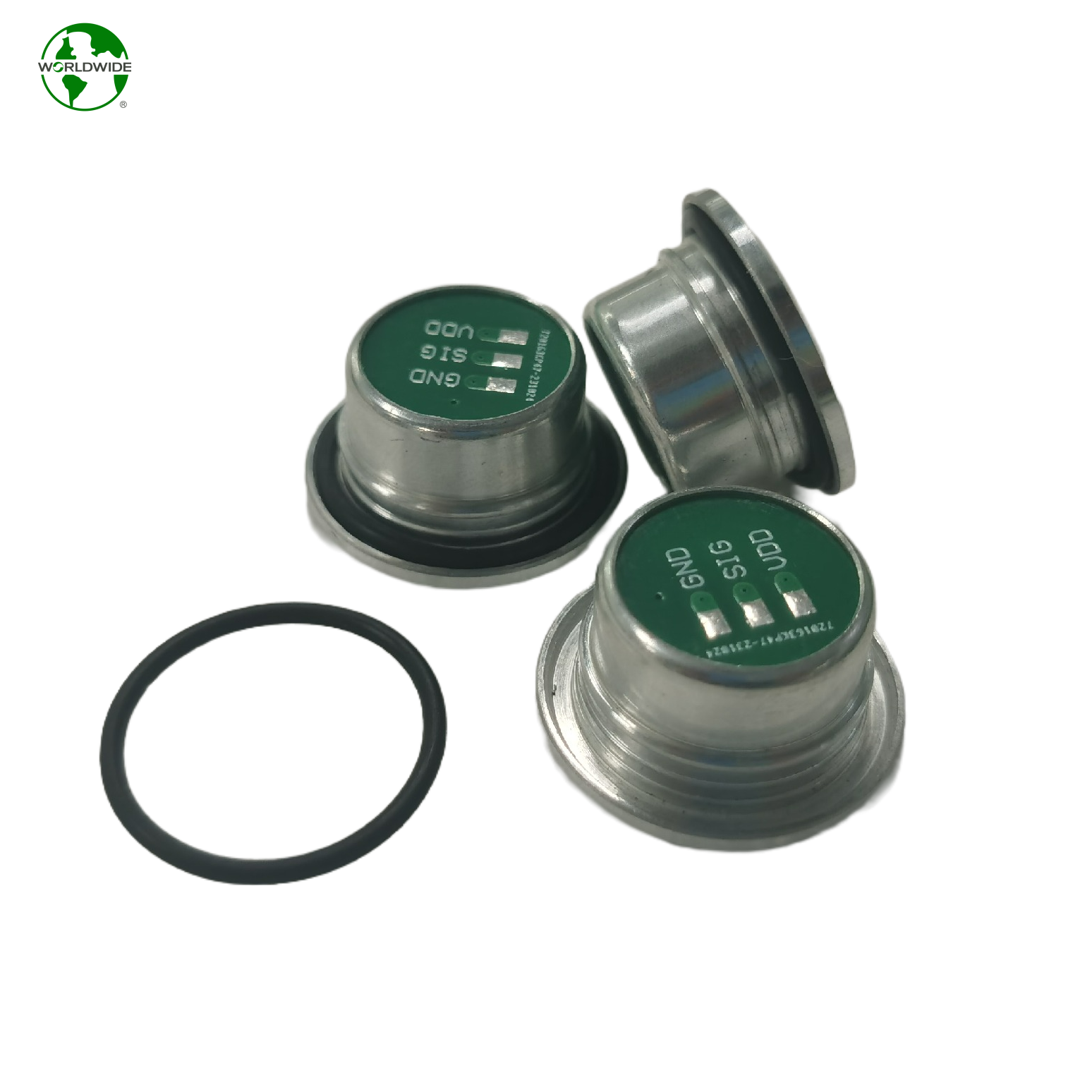

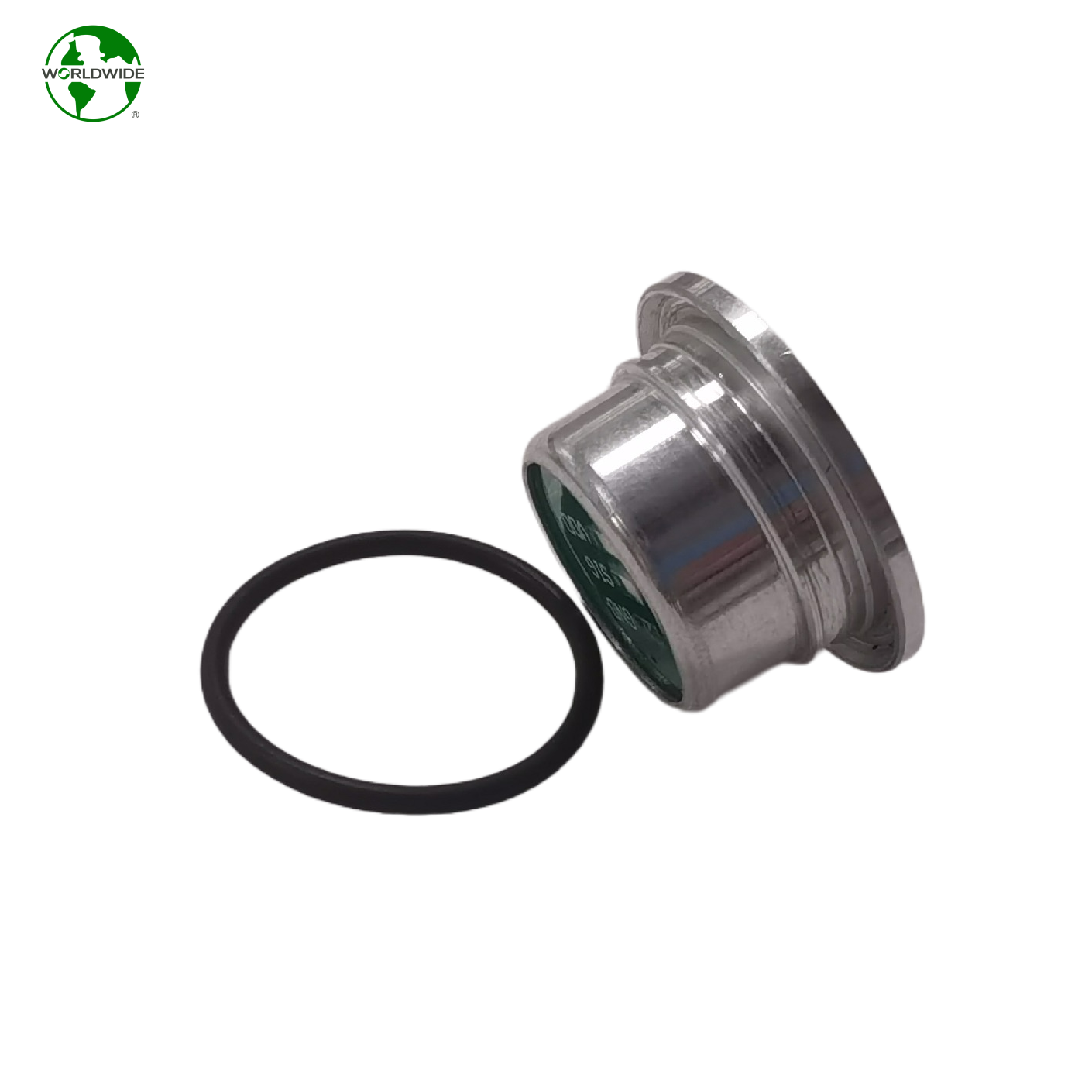

WWT 0BH DQ500 Sensor Auto Transmission System Part Dq500 Dsg TCU Gearbox Part 0bh Sensor 2978546 for Audi Tiguan
minimum order
1 piece
Quantity
- OE NO.:2978546, 0BH
- Purpose:for replace/repair
- Model:Audi Q5 2,0 TDI, Audi Q3 1,5
- Year:2011-2017, 2018-2024
- Car Fitment:Audi
- Warranty:Negotiable
- Place of Origin:Guangdong, China
- Brand Name:WWT
- Car Model:For Audi Tiguan
- Size:Standard
- Condition:New
- Certification:TS16949
- Warranty service:Negotiable
- Applicable Vehicle Brand::Audi Q3 Q5/Tiguan
- Autotransmission Type:0BH
- Target Market:Automobile aftermarket
- Quality:High-Quality
- Material:Standard
Products Paramenters
Parameter | Character | Range | Unit | ||||
min | nominal | max | |||||
|Pressure | P | 50 | / | 2200 | Kpa | ||
Output(P=50kPa;Vcc=5V) | Vout | / | 10 | / | %Vcc | ||
Output(P=2200kPa;Vcc=5V) | Vout | / | 90 | / | %Vcc | ||
Operation Temperature | T | -40 | / | 150 | ℃ | ||
Accuracy | / | / | 1 | / | %Vcc | ||
Operation Voltage | Vcc | 4.75 | 5 | 5.25 | V | ||
Operation Currency | Icc | / | 7 | 10 | mA | ||
Response time(10%-90%) | / | / | 1 | ms | |||
Output voltage down limitation(Vcc=5V) | UAmin | 0.25 | 0.3 | 0.35 | V | ||
Output voltage upper limitation(Vcc=5V) | UAmax | 4.65 | 4.7 | 4.75 | V | ||
Overload(5V~18V) | U | / | / | 18 | V | ||
Overpressure | Pmax | / | / | 3000 | kPaA | ||
Bursting Pressure | / | / | / | 4000 | kPaA | ||
Products Description

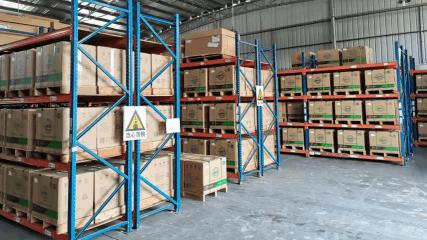

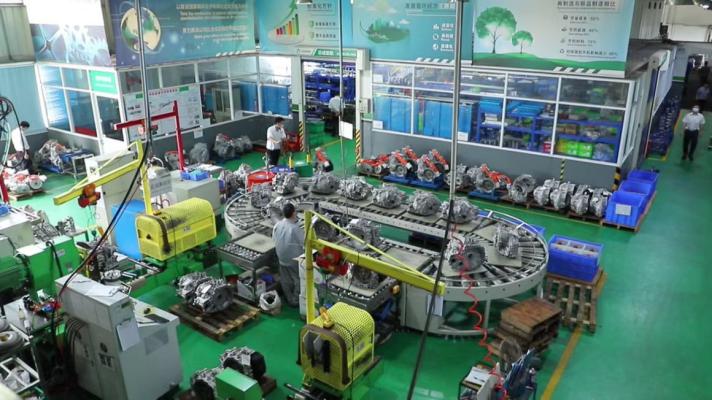

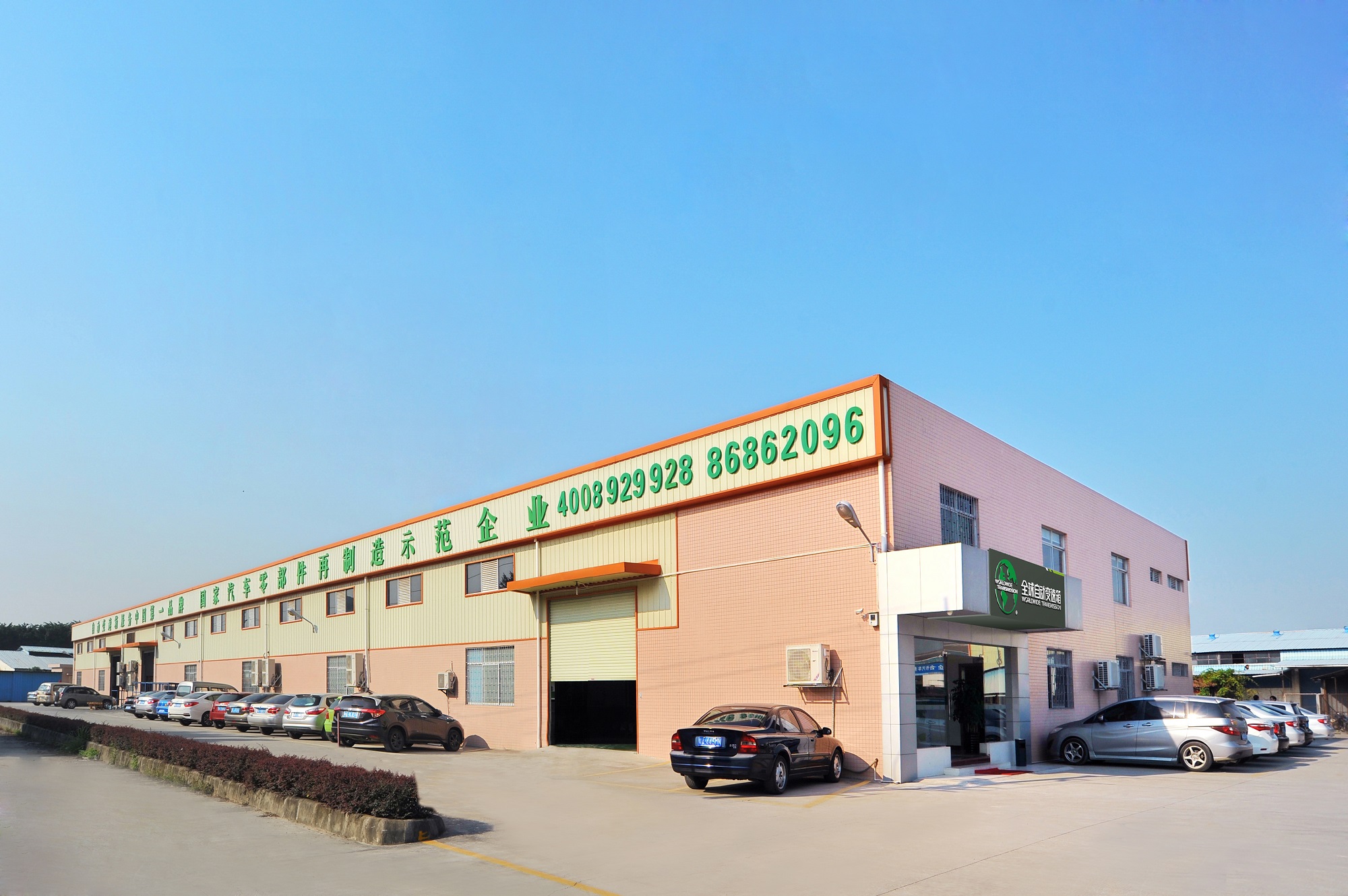

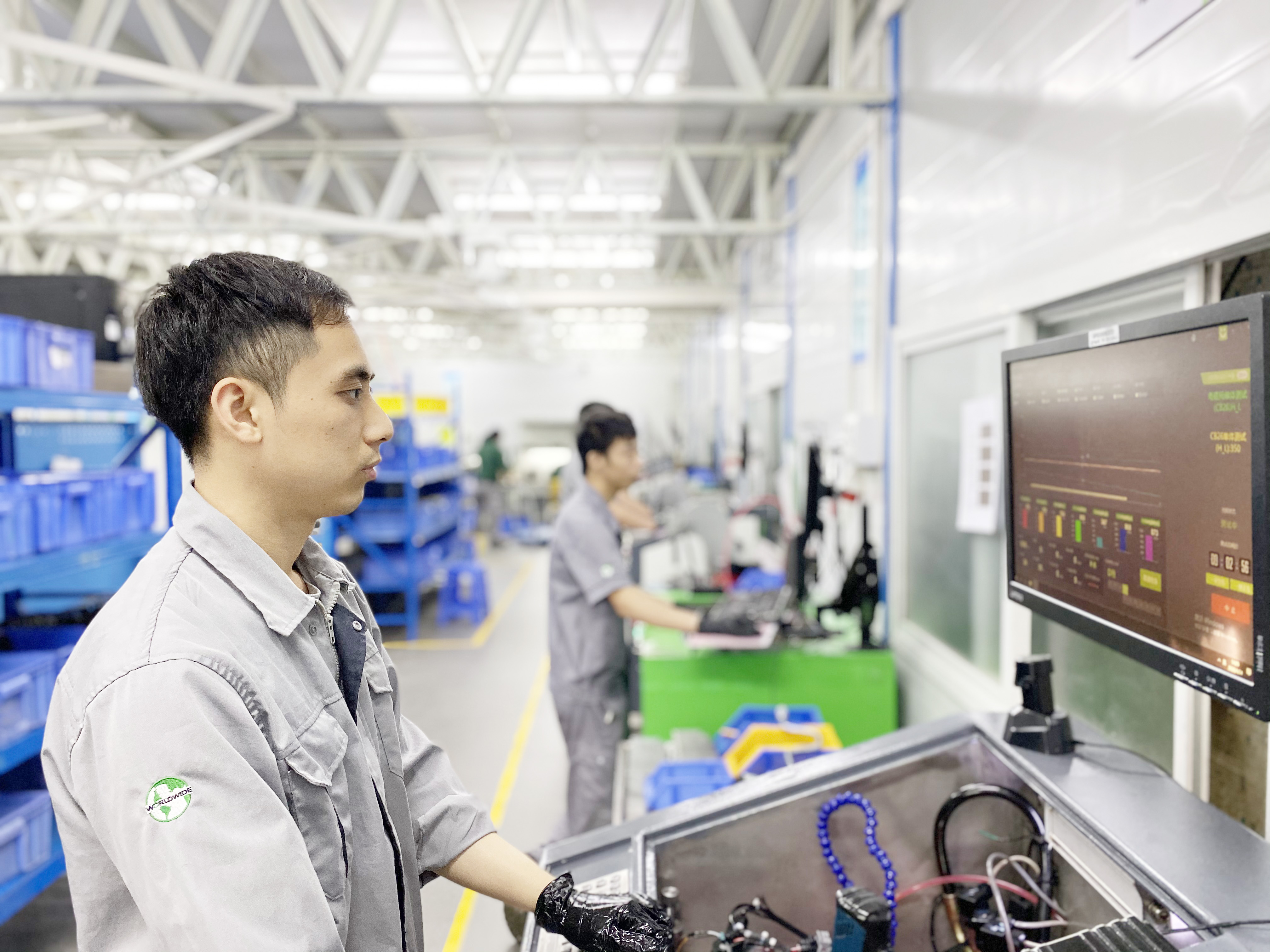

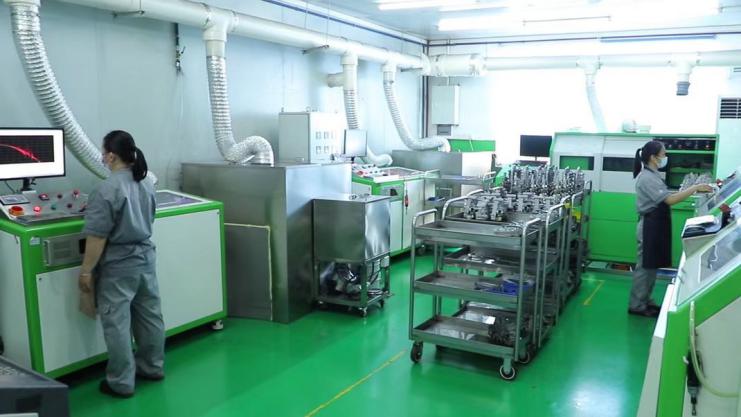

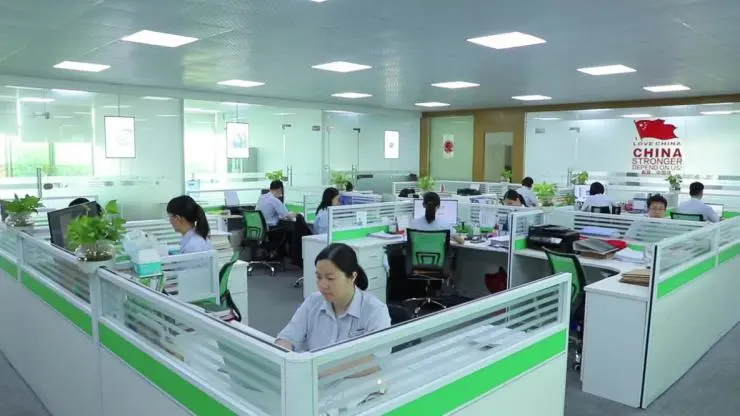

Company Profile
