auto parts pressure sensor SMP132 SMP142 auto transmission tcu pressure sensor 0DE/0BH/0DW/0DL/0DC
auto parts pressure sensor SMP132 SMP142 auto transmission tcu pressure sensor 0DE/0BH/0DW/0DL/0DC
auto parts pressure sensor SMP132 SMP142 auto transmission tcu pressure sensor 0DE/0BH/0DW/0DL/0DC
auto parts pressure sensor SMP132 SMP142 auto transmission tcu pressure sensor 0DE/0BH/0DW/0DL/0DC

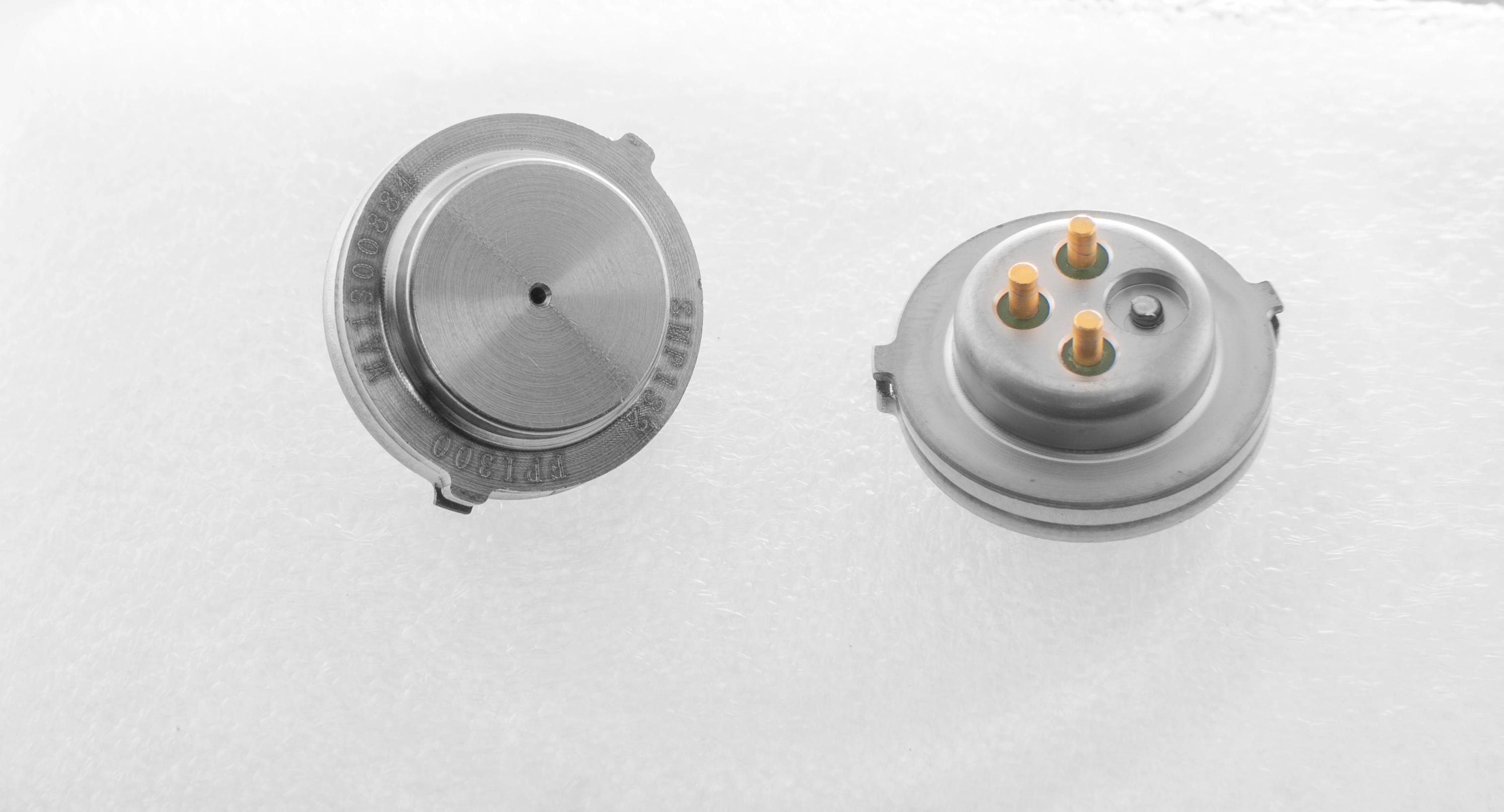

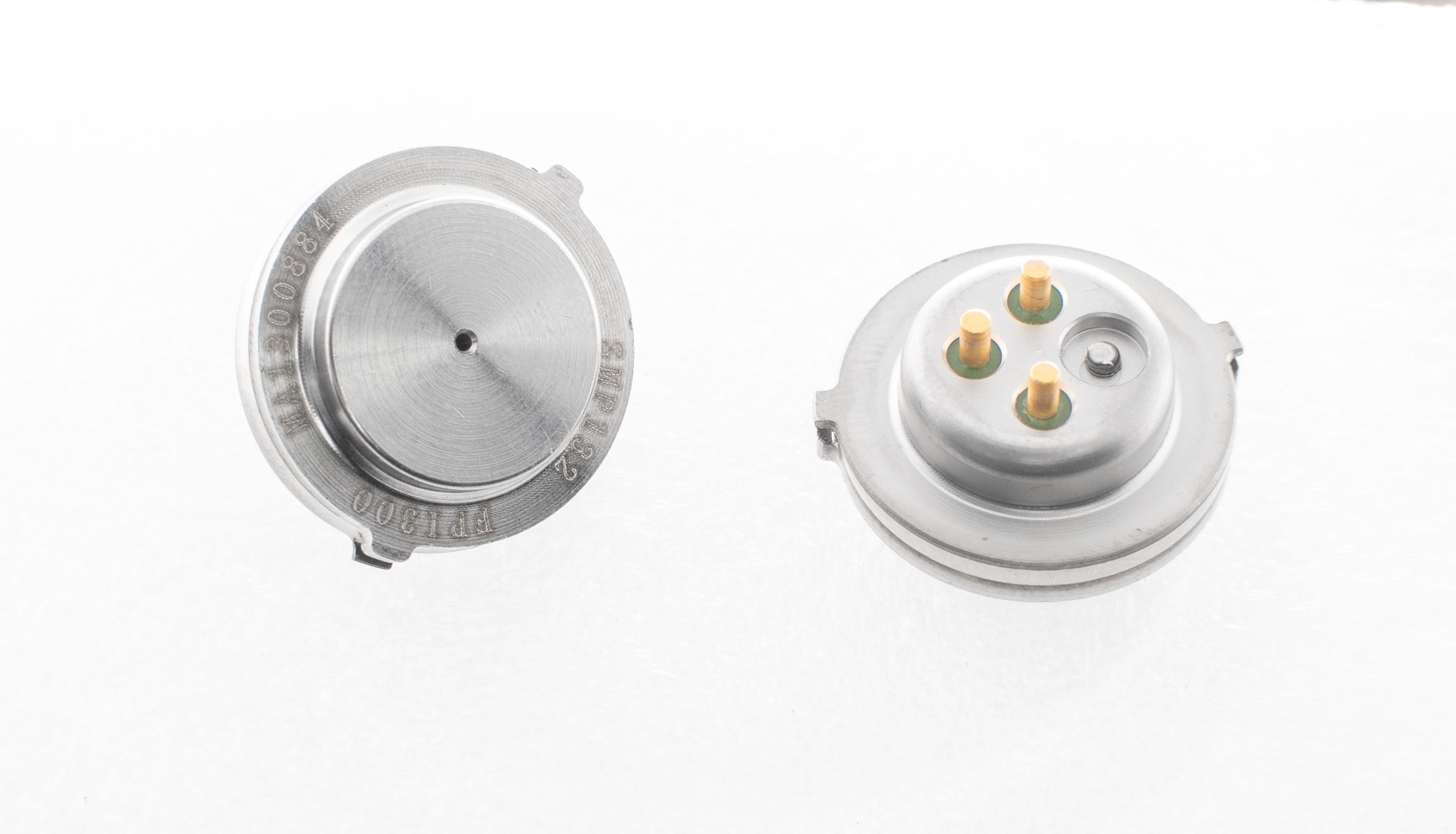

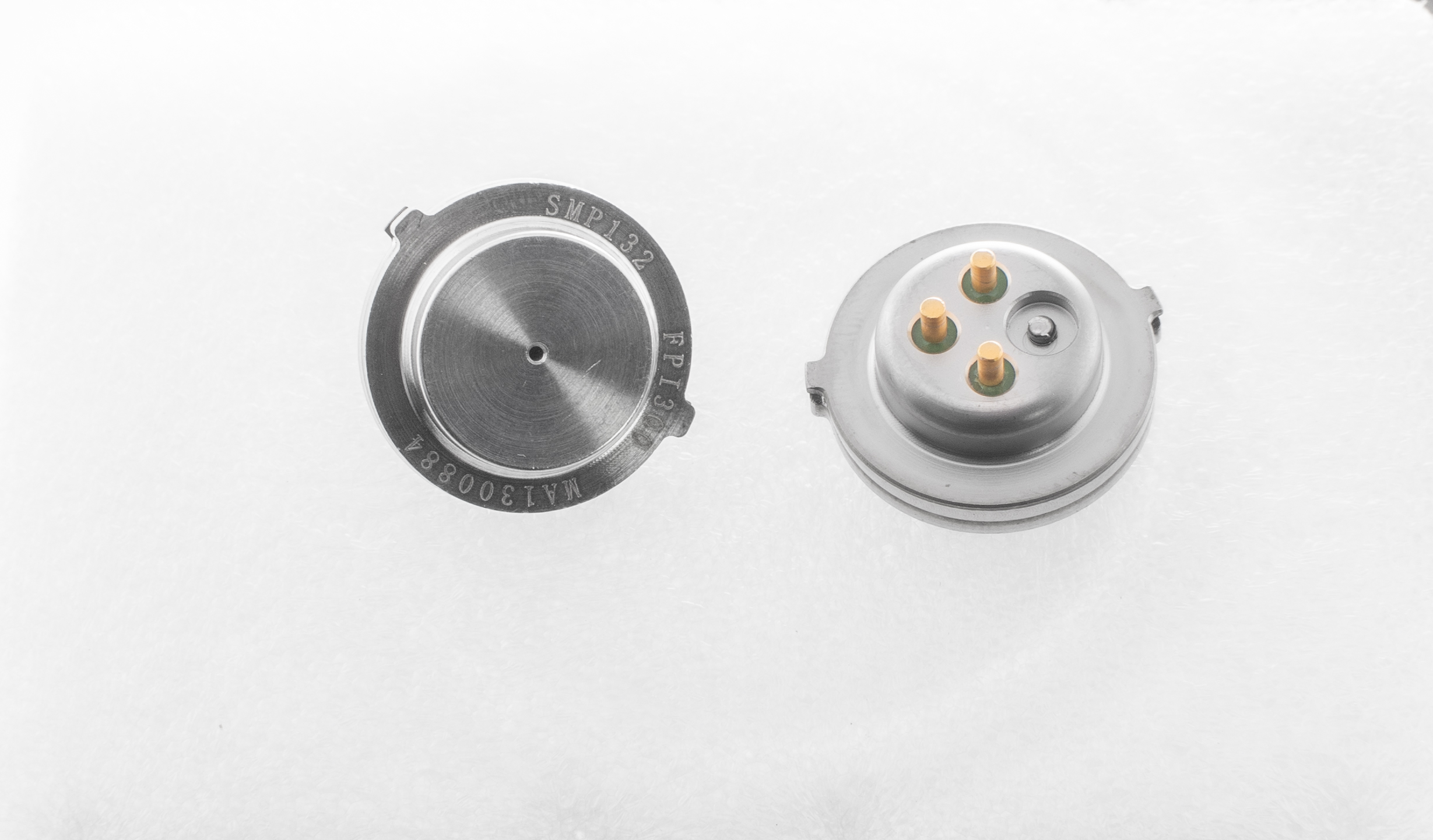

SMP132 SMP142 WWT-FPI300 Factory Supply Auto Transmission TCU Pressure Sensor Gearbox Parts for 0DE/0BH/0DW/0DL/0DC

minimum order
1 piece
Quantity
Contact Now
add to cart
  • OE NO.:0DE
  • Model:2000 - series
  • Year:2000-
  • Car Fitment:VW
  • Warranty:NEGOTIATE
  • Place of Origin:China
  • Brand Name:WWT
  • Condition:New
  • Sensor type:TCU pressure sensor
  • Applicable Vehicle Brand:Volkswagen/Sokoda/Audi
  • Applicable Vehicle Type::Superb/Magotan/Passat/Tiguan/Teramont/CC/Lamando/Q3/A4
  • Autotransmission Type:0DE/0BH/0DW/0DL/0DC
  • Target Market:Automobile aftermarket

Products Paramenters


Parameter
Character
Range
Unit
min
nominal
max
|Pressure
P
50
/
2200
Kpa
Output(P=50kPa;Vcc=5V)
Vout
/
10
/
%Vcc
Output(P=2200kPa;Vcc=5V)
Vout
/
90
/
%Vcc
Operation Temperature
T
-40
/
150
℃
Accuracy
/
/
1
/
%Vcc
Operation Voltage
Vcc
4.75
5
5.25
V
Operation Currency
Icc
/
7
10
mA
Response time(10%-90%)
/
/
1
ms
Output voltage down limitation(Vcc=5V)
UAmin
0.25
0.3
0.35
V
Output voltage upper limitation(Vcc=5V)
UAmax
4.65
4.7
4.75
V
Overload(5V~18V)
U
/
/
18
V
Overpressure
Pmax
/
/
3000
kPaA
Bursting Pressure
/
/
/
4000
kPaA


Products Description

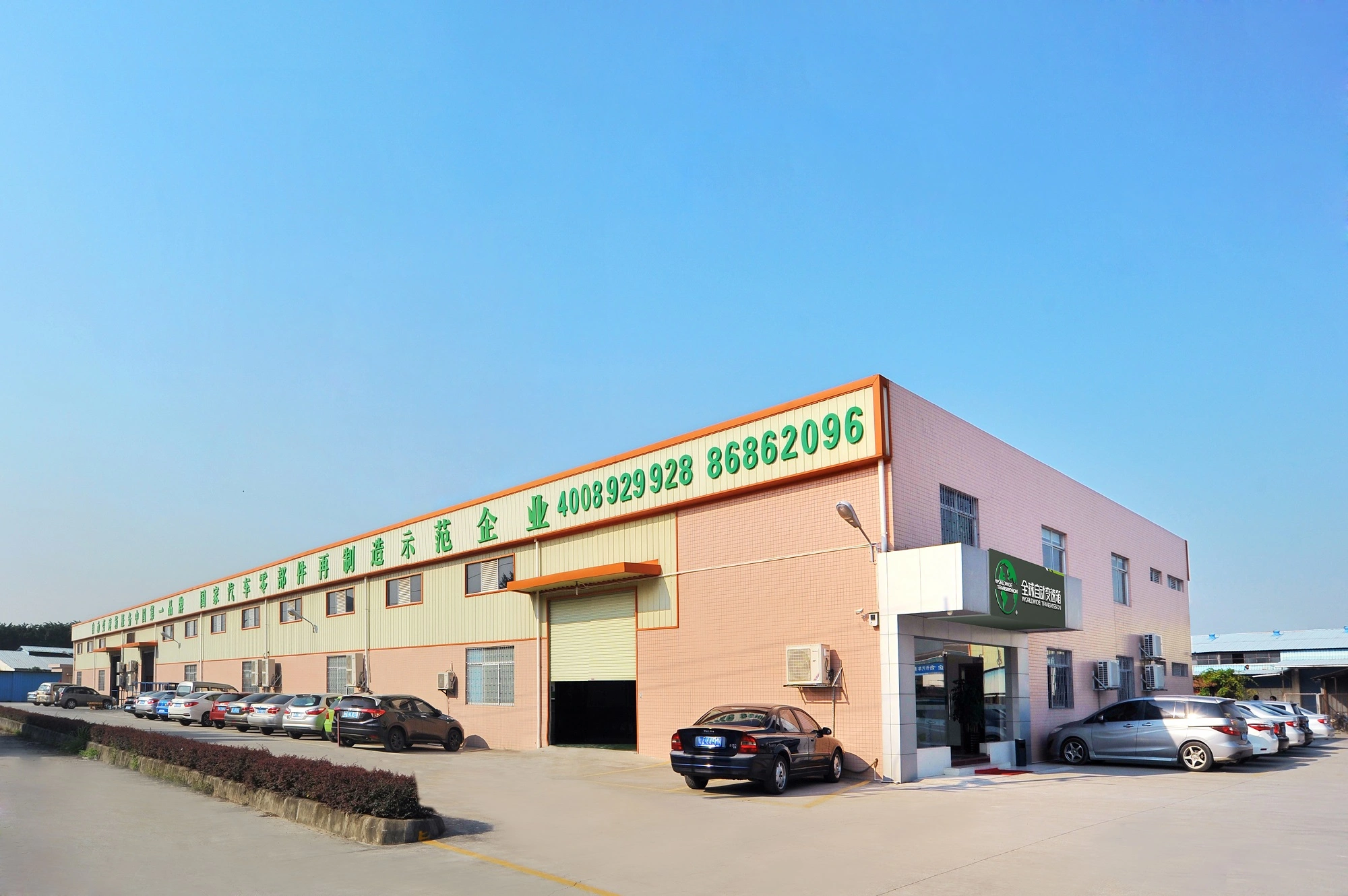

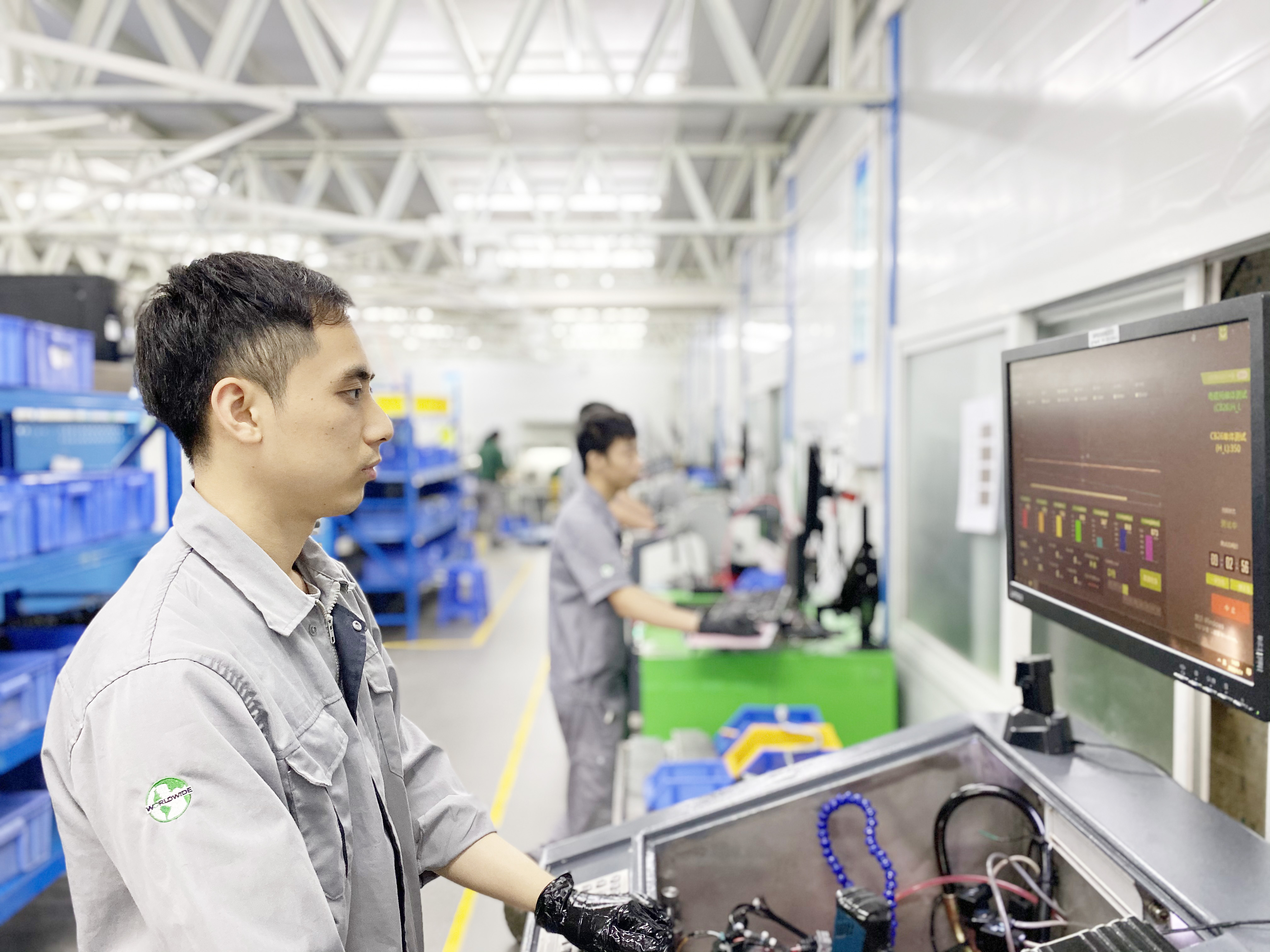

Company Profile
